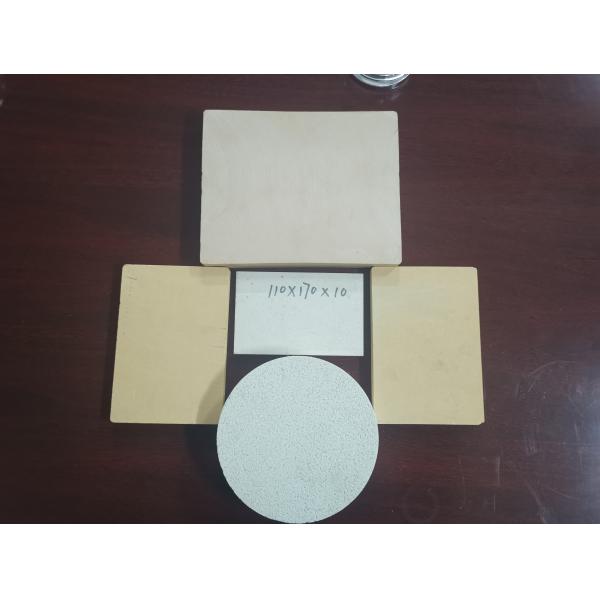

Powder Metallurgy Zirconia Sintering Tray For Dielectric Ceramics , Chip Capacitors

Brand Name : ZG

Model Number : MS

Certification : CE

Place of Origin : CHINA

MOQ : 1 piece

Price : USD10/piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 3 working days

Packaging Details : Strong wooden box for Global shipping

Refractoriness (℃) : 1770< Refractoriness< 2700

Material : Zirconia, ZrO2

Application : Sintering kiln

Shape : plate, tray, gasket, tile

Specification : Customized by Customer

Color : Yellow, white

Contact Now

Sintering tray for dielectric ceramics, powder metallurgy, chip capacitors, ferrite magnetic, titanium sintering kiln

A major advantage of ZG Solutions sintering trays is that they are composed of many refractory materials that are ideal for sintering applications. Our sintering trays are durable under a variety of furnace conditions and help maintain a high powder purity. High performance sintering trays are valuable in multiple industries because they possess superior structural strength and can be manipulated at elevated sintering temperatures. With our sintering trays, we guarantee high-purity conditions for successful chemically-sensitive fusion processes.

CHEMICAL AND PHYSICAL PROPERTIES OF ZIRCONIA CERAMIC PARTS
Model	Chemical compostion						Physical property
Model	ZrO₂ (%)	Al₂O₃ (%)	SiO₂ (%)	MgO (%)	Fe₂O₃ (%)	TiO₂ (%)	Bulk density (g/cm³⁾
ZGZN-PMD	95-96	≤0.2	≤0.4	≤2.9	≤0.1	≤0.1	5.40-5.50
ZGZN-PMO1	≥95	≤0.2	≤0.5	≤2.9	≤0.1	≤0.1	5.35-5.45
ZGZN-65	≥66	≤0.6	≤33	≤0.1	≤0.3	≤0.1	3.50-3.70
ZGZN-75	≥75	≤0.5	≤24	≤0.1	≤0.3	≤0.1	3.95-4.05
ZGZN-85	≥85	≤0.5	≤14	≤0.1	≤0.3	≤0.1	4.40-4.60

We provide the following to suit your application:

Metallurgy flow control: Tundish ZrO2 metering nozzle inset and converter slag-stopping ZrO2 slide plate, ZrO2 Ring, Insert, Etc.
Amorphous Alloys, metal Al, Cu, amorphous alloys powder air atomizing nozzle.
Aritificail crystal(Sapphire) Growing Equipment- Rare compsite SS ceramic thermal field.
Ti-Alloy industry-Sintering gasket(tray), smelting crubible.
Sintering industry-Preheating ZrO2 parision, metal sputtering, target, tile, etc.
Glass Industry- (95 HP ZrO2) photovoltaic glass, shale glass, etc., cover plate & lip brick, etc.

Powder Metallurgy Zirconia Sintering Tray For Dielectric Ceramics , Chip Capacitors

Chip Capacitors Zirconia Sintering Tray
